In our previous guide Best Power Meter for Cyclists: Crank, Spider, or Pedal?, we established the spider power meter as the ultimate choice for professional cycling training—it’s the top pick for serious cyclists thanks to unbeatable accuracy and rock-solid stability.

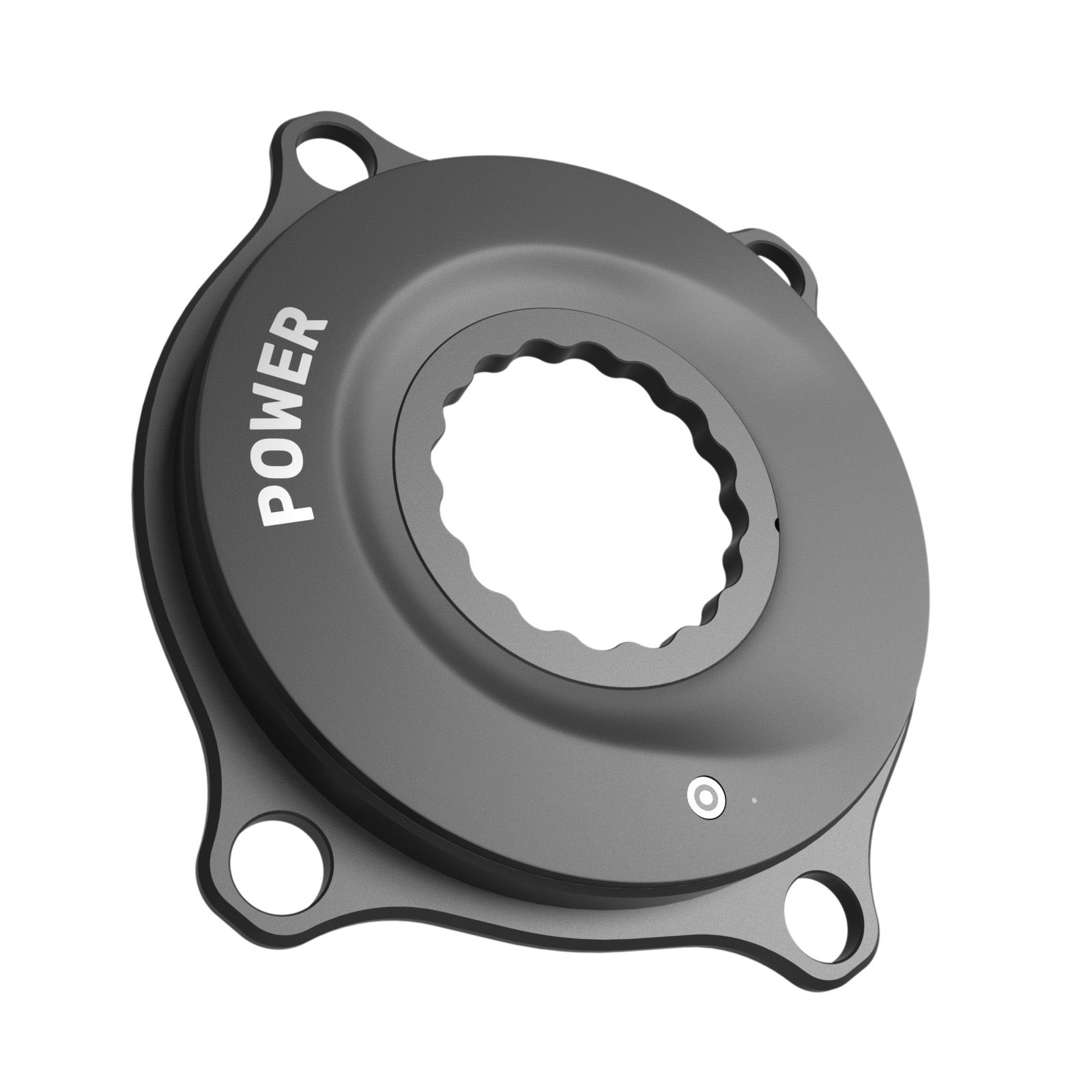

Many riders wonder: Where does this pinpoint accuracy come from? How do we hit the industry’s gold-standard ±1% precision? And why calibrate before every ride? We’re ditching the complex engineering formulas for simple real-world analogies and hard test data to break down the core science of the Fitcare Spider Power Meter, plain and simple.
Core Principles: 3 Easy Analogies to Understand Its Unrivaled Accuracy
1.Power Formula Explained with the Grindstone Analogy
Power (W) = Torque (N·m) × Angular Velocity (rad/s)
(1) Torque = Strain Gauge Deflection × Torque Coefficient
(2) Angular Velocity = 2π / Spider Rotation Time (π = 3.1415926…)
The Grindstone Analogy
- Torque: The force you use to turn a grindstone—your pedaling power on the bike.
- Angular Velocity: How fast the grindstone spins—directly tied to your cadence (pedal rotation speed).
- Power: The grindstone’s overall work rate—only combining force and speed tells you your true physical output on the bike.
2. Understanding Cadence: Formula & Simple Clap Analogy
3.The Kitchen Scale Tare Analogy: Calibration = Zeroing the Meter
- Manual Calibration: Calibrate in seconds pre-ride via the Fitcare App or your bike computer.
- Auto Calibration: Built-in algorithms calibrate automatically under specific conditions—no manual input needed. Adapts to shifting temperatures on long rides and stops data drift in its tracks.
- Reverse Crank Calibration: Real-time temperature drift correction, no stop required. Just 5 consecutive reverse crank revolutions for a quick recalibration—maintains precision even during long rides in changing conditions.
Accuracy Assurance: How We Deliver Industry-Leading ±1% Precision
±1% precision is the professional power meter gold standard—and a non-negotiable core feature of the Fitcare Spider Power Meter. This isn’t a marketing claim; it’s the result of full-process engineering rigor, from component selection and factory calibration to environmental adaptation.
1.Core Hardware: The Foundation of Precision
We use high-sensitivity strain gauges & 3-axis accelerometers to capture the subtlest pedaling forces, with real-time calculation of angular velocity and cadence. This builds an unshakable foundation for power measurement accuracy.
2.Comprehensive Factory Calibration: Rigorous Testing for Every Unit
- Multiple rounds of standard weight calibration
- Full temperature range environmental testing
3.Full Temperature Range Compensation: Solving Cycling’s Biggest Accuracy Woe
4.Structural Design: Stable Data, Unbeatable Durability
- Rigid one-piece design: Maximum rigidity and data stability
- IPX7 water resistance: Uninterrupted performance in rainy rides and water crossings
- Lightweight construction: Adds zero extra weight to your ride—preserves your pedaling efficiency
| Specification | Parameter |
| Power Accuracy | ±1% |
| Battery Life | 300h |
| Battery Type | Rechargeable Lithium Battery |
| Wireless Protocols | ANT+, Bluetooth |
| Waterproof Rating | IPX7 |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Power Range | 0-2800 W |
| Cadence Range | 20-240 RPM |
| Measured Data | Power, Cadence, Left/Right Balance, Pedal Smoothness |
